ZE13 Style Wire Mesh Basket



KW Materials Handling is your source for used Ford ZE-13 style heavy-duty wire mesh containers.  We have sold thousands of these used automotive containers.   These bins are super heavy-duty and offer years of reliability for the automotive industry.  The standard dimensions on the ZE-13 wire mesh containers are 53" x 48" x 40"high.  They come with two half drop gate on the 53" side.  Constructed of heavy-duty wire mesh sides and floor.  These containers are rated for 4000 lbs and stack up to 4 high.  Fork stirrups are on the 48" side and they have pin feet for positive stacking.  These are the perfect bin for stampings or really heavy-duty applications.

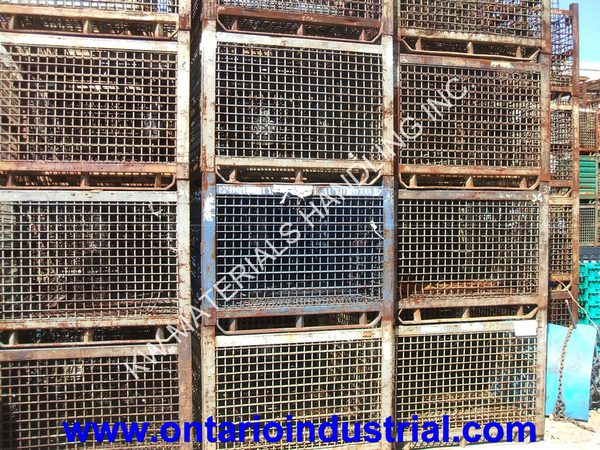

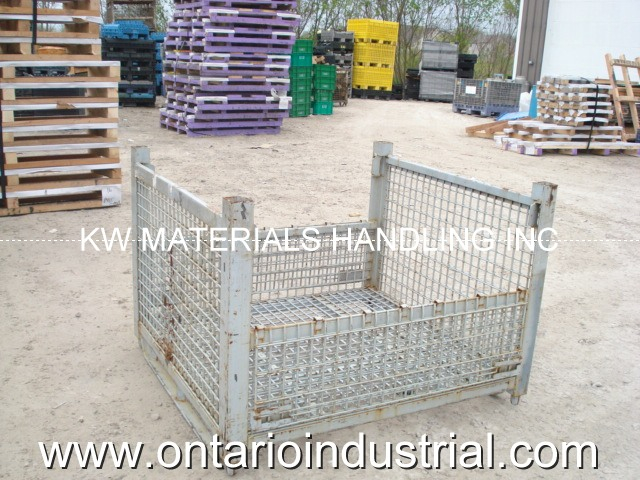

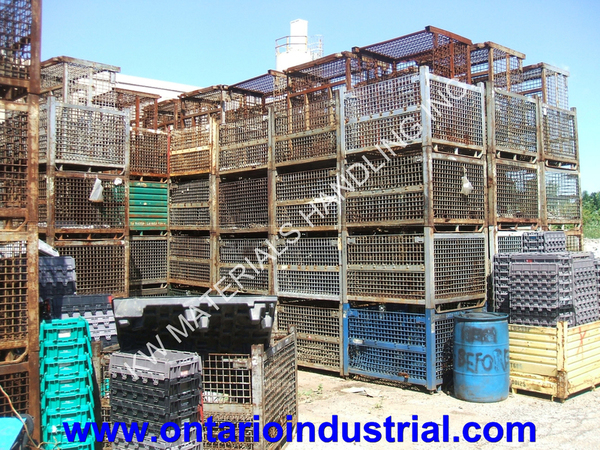

                        New ZE-13 Wire Basket                                                                                    Used ZE-13 Wire Basket

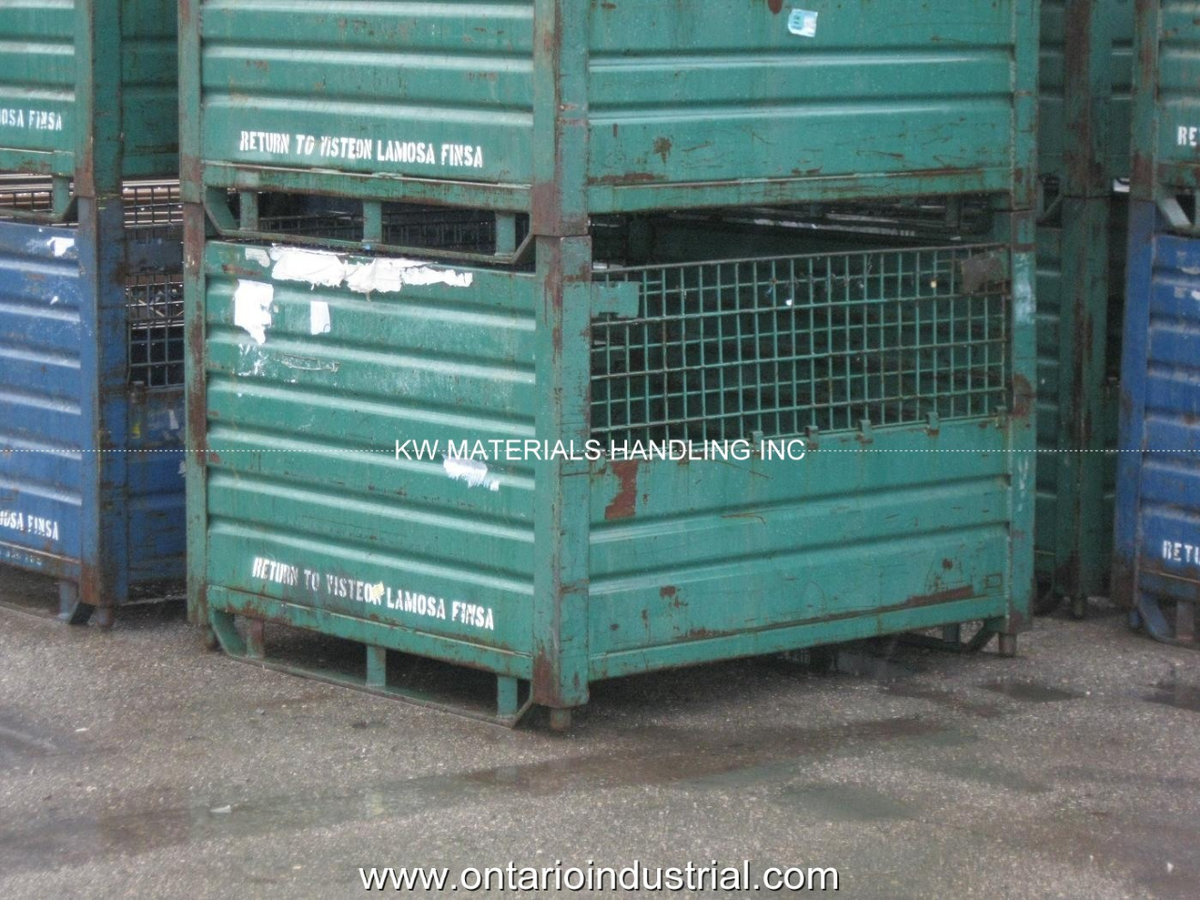

                   New ZE-13 Custom Colour                                                                               Used Ze-13 Solid & Mesh Combo



KW Materials Handling specializes in finding large quantities of containers.  We have access to the largest dealer network of bins and containers in North America.  We offer quantity discounts on truckload quantities.





KW SERIES CONTAINERS



KW SERIES CONTAINERS ARE AN EXCLUSIVE LINE OF CONTAINERS DESIGNED TO BE A COST EFFECTIVE ALTERNATIVE TO THE POPULAR GM-5131 WIRE MESH BINS AND THE ZE-13 WIRE MESH BASKETS.  WE DESIGNED OUR KW SERIES BINS TO THE SAME DIMENSIONS AND CAPACITIES OF THE GM 5131 AND ZE13 BINS BUT AT A LOWER COST POINT.  THESE KW SERIES EXPANDED METAL BASKETS WILL DO THE WORK THE SAME AS THE INDUSTRY STANDARD BINS FOR MOST APPLICATIONS.  CONTACT US TODAY TO LEARN MORE.











KW-13 CONTAINERS ( ZE-13 ALTERNATIVE )



KW-13 CONTAINERS ARE A COST EFFECTIVE SOLUTION TO THE ZE-13 WIRE MESH CONTAINER. OUR KW13 CONTAINERS STILL OFFER THE SAME 4000 LB. CAPACITY OF YOUR STANDARD ZE-13 WIRE BASKET BUT ARE CONSTRUCTED WITH ¾-13 EXPANDED METAL INSTEAD OF 2” X 2” WIRE MESH . YOU GET ALL THE SIMILAR FEATURES OF THE GM-5131 BIN LIKE DROP GATES AND FORK STIRRUPS BUT ALSO GET ADDITIONAL FEATURES SUCH AS THE SOLID FLOOR AND EXPANDED METAL SIDES WHICH ALLOW YOU TO STORE VERY SMALL PARTS THAT WON’T POKE OUT LIKE THEY WOULD WITH A STANDARD ZE-13 CONTAINER. KW-13 CONTAINERS ARE AN EXCLUSIVE PRODUCT ONLY AVAILABLE FROM KW MATERIALS HANDLING INC.


• DIMENSIONS = 53” X 48” X 40”HIGH
• CAPACITY = 4000 LBS U.D.L.
• SOLID STEEL FLOOR ALLOW STORAGE OF SMALLER PARTS
• HD ¾-13 EXPANDED METAL SIDES ALLOW SMALLER PARTS
• TWO DROP GATES ON THE 53” SIDE LIKE STANDARD ZE13 BINS
• POSITIVE STACKING CUP FEET FOR EASY AND SAFE STACKING
• FORK STIRRUPS ( 3” X 8” X 3” ) ON 53” SIDES
• KW-13 BINS ARE STACKABLE UP TO 5 HIGH
• POWDER COATED - CHOOSE BETWEEN 13 STANDARD COLOURS
• KW SERIES BINS ONLY AVAILABLE AT KW MATERIALS HANDLING INC.







ZE-21 Style Wire Mesh Basket



Just like the ZE-13 style heavy-duty wire mesh container but only taller.  These bins are super heavy-duty and offer years of reliability for the automotive industry.  The standard dimensions on the ZE-21 wire mesh containers are 54" x 44" x 48"high.  They come with a half drop gate on the 53" side.  Constructed of heavy-duty wire mesh sides and floor.  These containers are rated for 4000 lbs and stack up to 4 high.  Fork stirrups for safe transport and they have pin feet for positive stacking.  These are the perfect bin for stampings or really heavy-duty applications.  NOTE:  the ZE-21 containers are not compatible with the ZE-13 containers and will not stack with each other.  However the ZE-21 wire bins will stack with the standard GM5131 wire mesh bins as they share the same footprint.
